MAP: $699.99

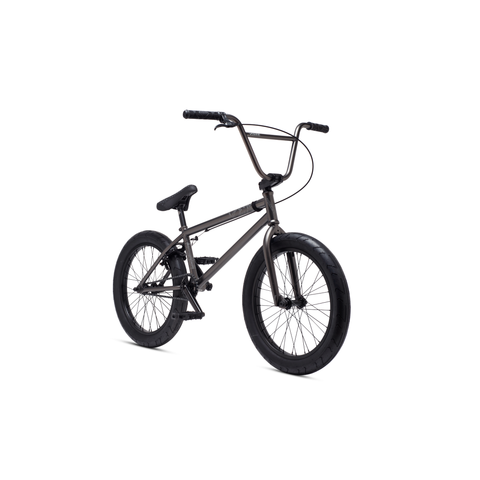

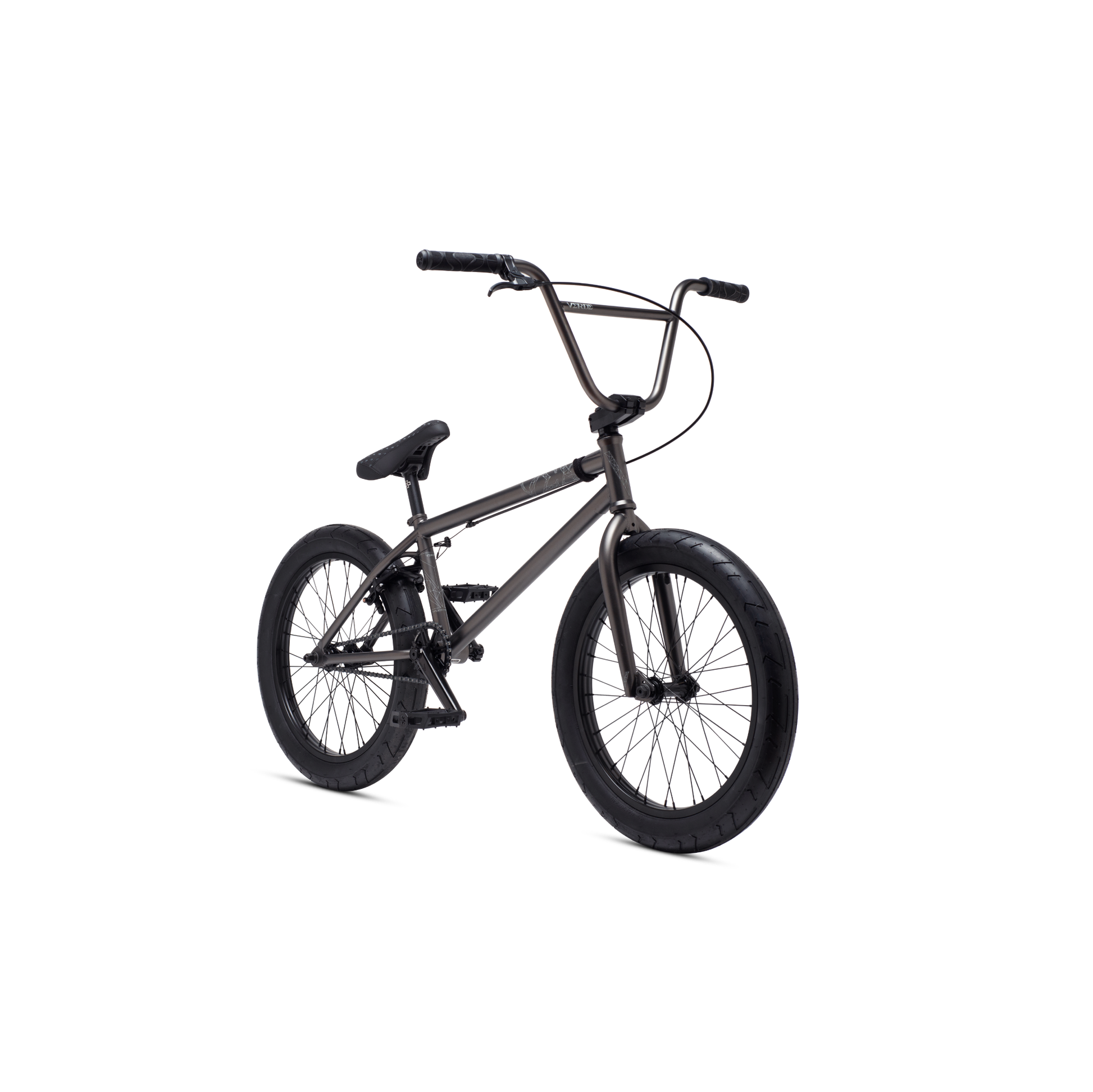

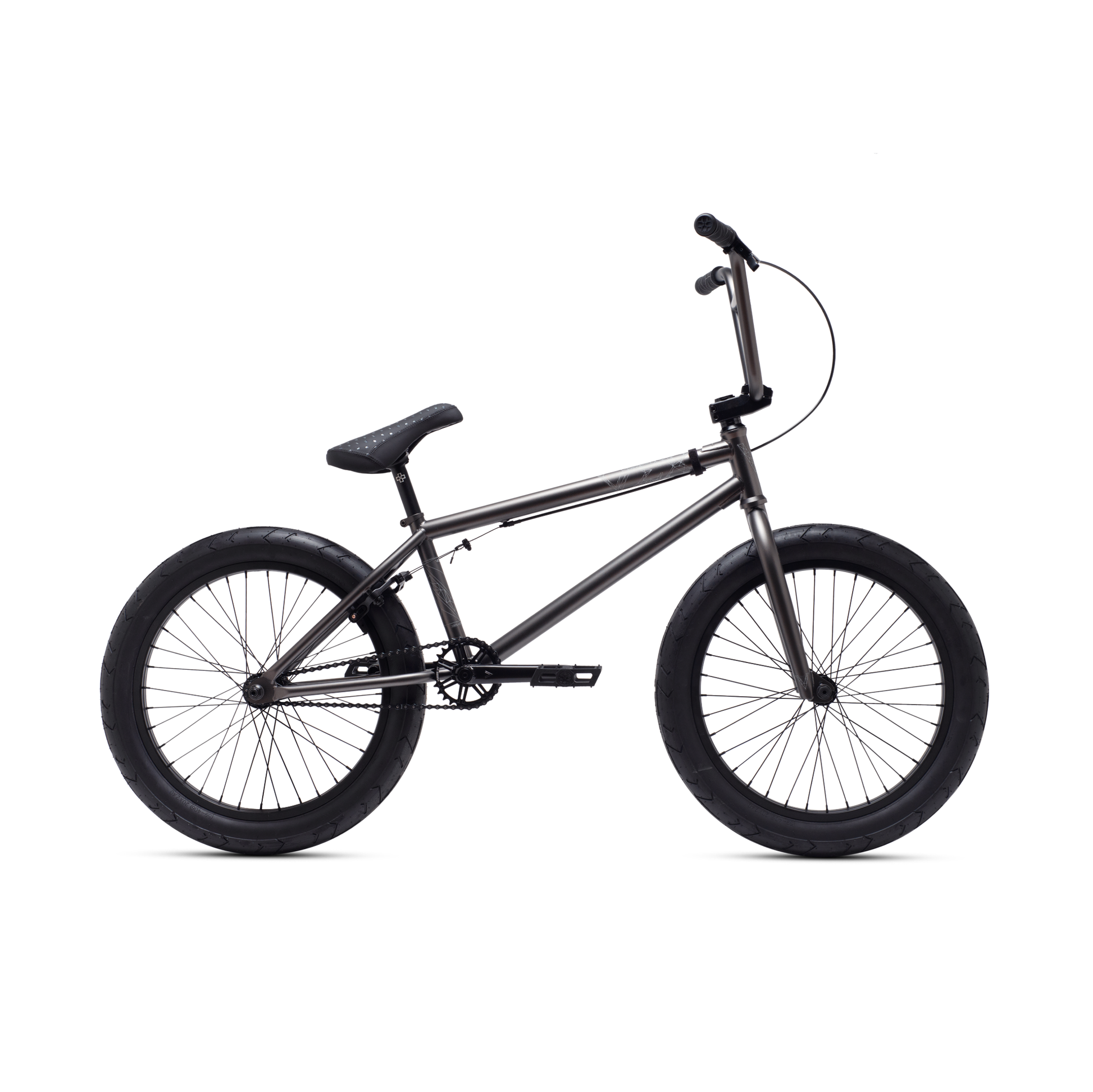

The Vex XL makes a serious step up with modern frame geo constructed with 100% chromoly. The new full 4130 version delivers a tall standover, reinforced downtube, removable brake mounts, and custom cast seat clamp. DUO Brand covers all the corners with Resilite pedals, HSL 2.4” tires, and the all new Tag Stealth Pivotal seat.
Spec:
Frame |
100% chromoly frame w/ CNC machined integrated head tube, Mid BB, integrated seat post clamp, top tube gusset w/ Verde logo, removable brake mounts |
Top Tube Length |
21” |
Chain Stay Length |
13.5” |
Head Tube Angle |
74.5º |
Seat Tube Angle |
71º |
BB Height |
11.7” |
Standover Height |
9.4” |
Fork |
Verde Regent 25, 100% chromoly, internally threaded pre-load bolt, tapered legs, 25mm offset |
Bars |
100% chromoly, 9.25” rise |
Stem |
Verde top load, 50mm reach |
Headset |
Sealed integrated |
Brake |
Alloy U-brake |
Lever |
Alloy, 2-finger design |
Rear Hub |
Verde Regent, fully sealed, 14mm axle, 9-tooth driver |
Front Hub |
Fully sealed, 3/8” female axle |
Sprocket |
Verde Recon 25-tooth, stamped 6061 aluminum |
Cranks |
Tubular chromoly 3-piece, 170mm |
BB |
19mm sealed Mid |
Chain |
PYC 410, black |
Pedals |
DUO Brand Resilite |
Front Rim |
Verde Neutra, double wall, 6061 aluminum, 36-hole |
Rear Rim |
Verde Neutra, double wall, 6061 aluminum, 36-hole |
Front Tire |
2.4” DUO Brand HSL, 65 psi |
Rear Tire |
2.4” DUO Brand HSL, 65psi |
Seat |
DUO Brand Tab Stealth Pivotal, 4-panel |
Seat Post |
DUO Brand Stealth Pivotal, 200mm alloy |
Seat Clamp |
Integrated |
Grips |
DUO Brand Homan flangeless grips w/ DUO Brand Resilite bar ends |
Weight |
24.9 lbs |
